MHC-1060/1080CE/ACE Automatic Die Cutting & Creasing Machine with Stripping (Heavy Duty)

Category：

Product Centre

Die Cutting and Creasing Machine

Keyword：

MHC-1060-1080CE-ACEAutomaticDieCutting&CreasingMachinewithStrippi

Technical Parameter
Product Details
Video

Online Message

Commodity name: MHC-1060/1080CE/ACE Automatic Die Cutting & Creasing Machine with Stripping (Heavy Duty)

MHC-1060/1080CE/ACE Automatic Die Cutting & Creasing Machine with Stripping (Heavy Duty)

● Main Specifications:

Model	MHC-1060/1080CE	MHC-1060/1080ACE (Heavy Duty)
Max. Sheet Size	1060×760mm/1080×780mm
Min. Sheet Size	400×350mm
Max. Cutting Size	1050×750mm/1070×770mm
Gripper Margin	9-17mm
Inner Chase Size	1120×786mm
Stock Range	Paper: From 80 to 2000g/m2, 0.1~2mm Paper, Corrugated Board: Up to 4mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	300T	600T
Max. Working Speed	7500s/h
Max. Feeder Pile Height	1600mm (With Wooden Pallet)
Max. Delivery Pile Height	1400mm (With Wooden Pallet)
Main Motor Wattage	11kw	15kw
Overall Dimensions	7300×4200×2350mm (L: paper prepared track included; W: platform included)
Net Weight of Machine	17T/18T	19.5T/20T
Full Load Wattage	16.9kw	21kw
Air Requirement	Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min

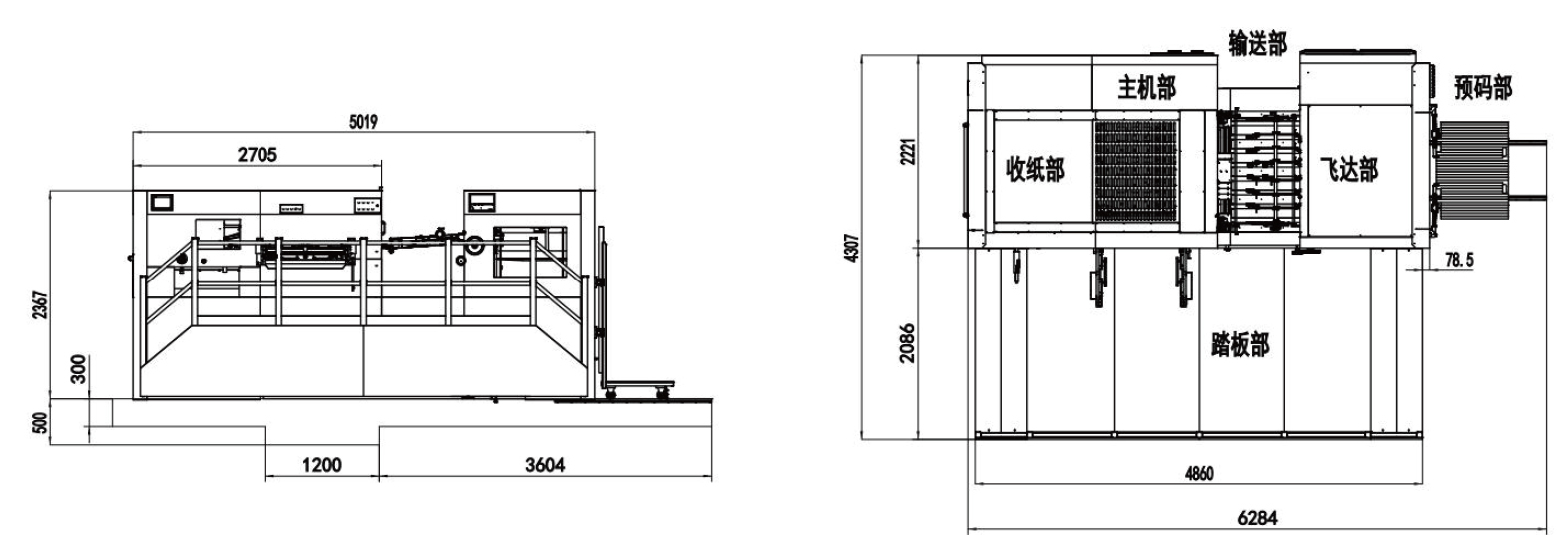

● Drawing;

● Applications and Characters

❈ Partial Introduction:

Feeder Unit:

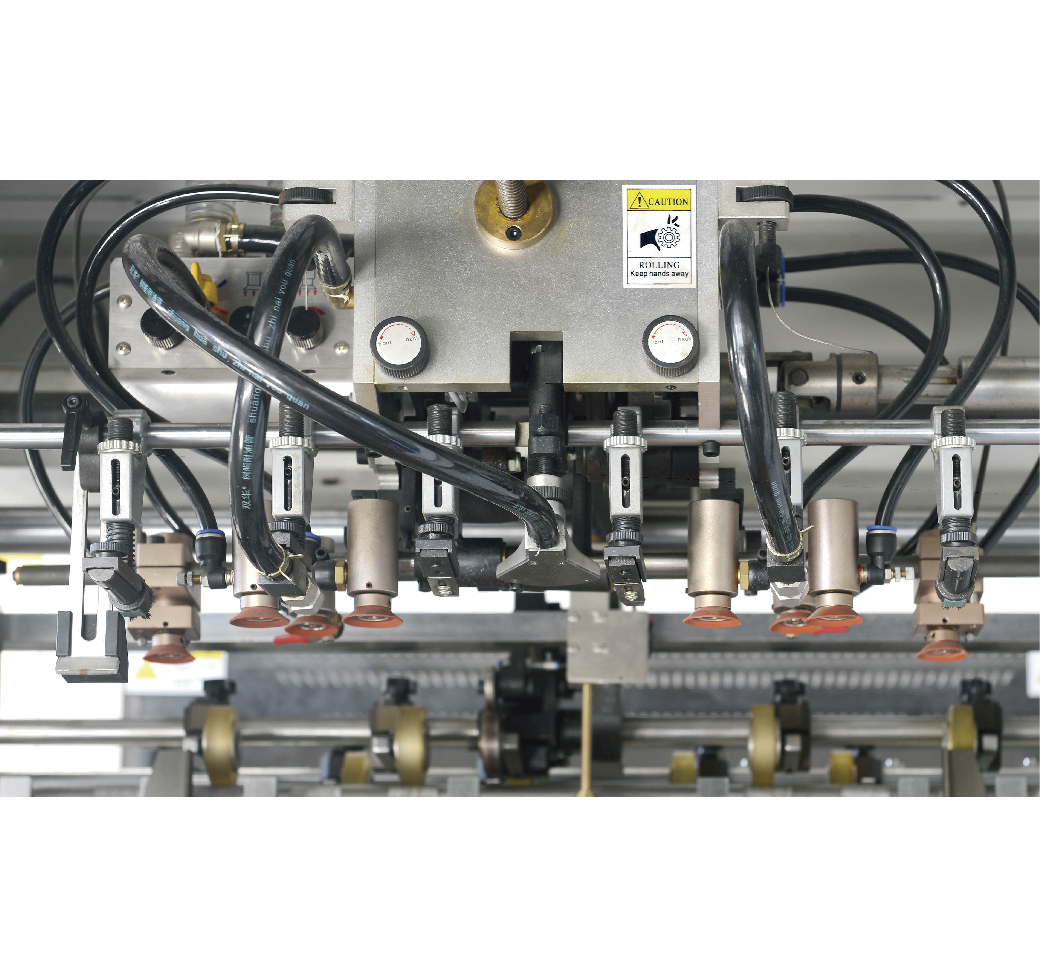

Four pick up and four forward suck heads with angle adjustment to handle different kinds of materials.

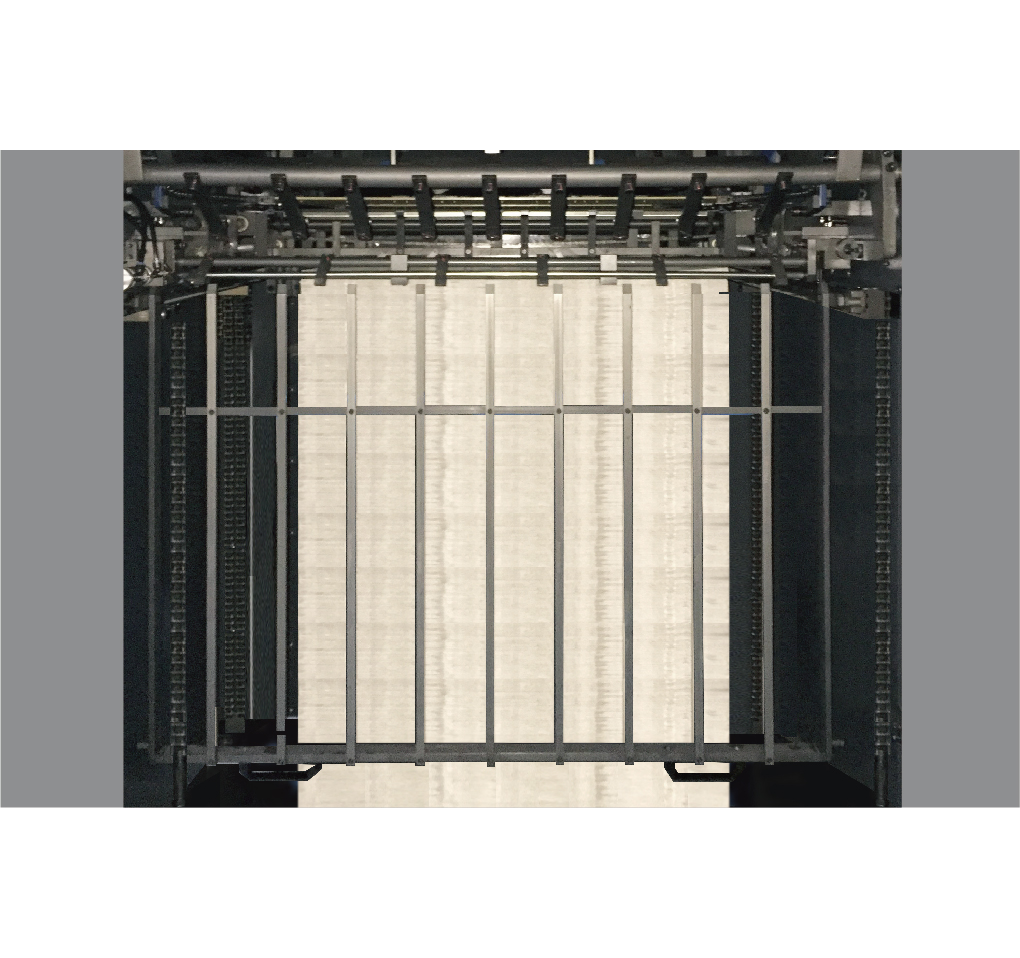

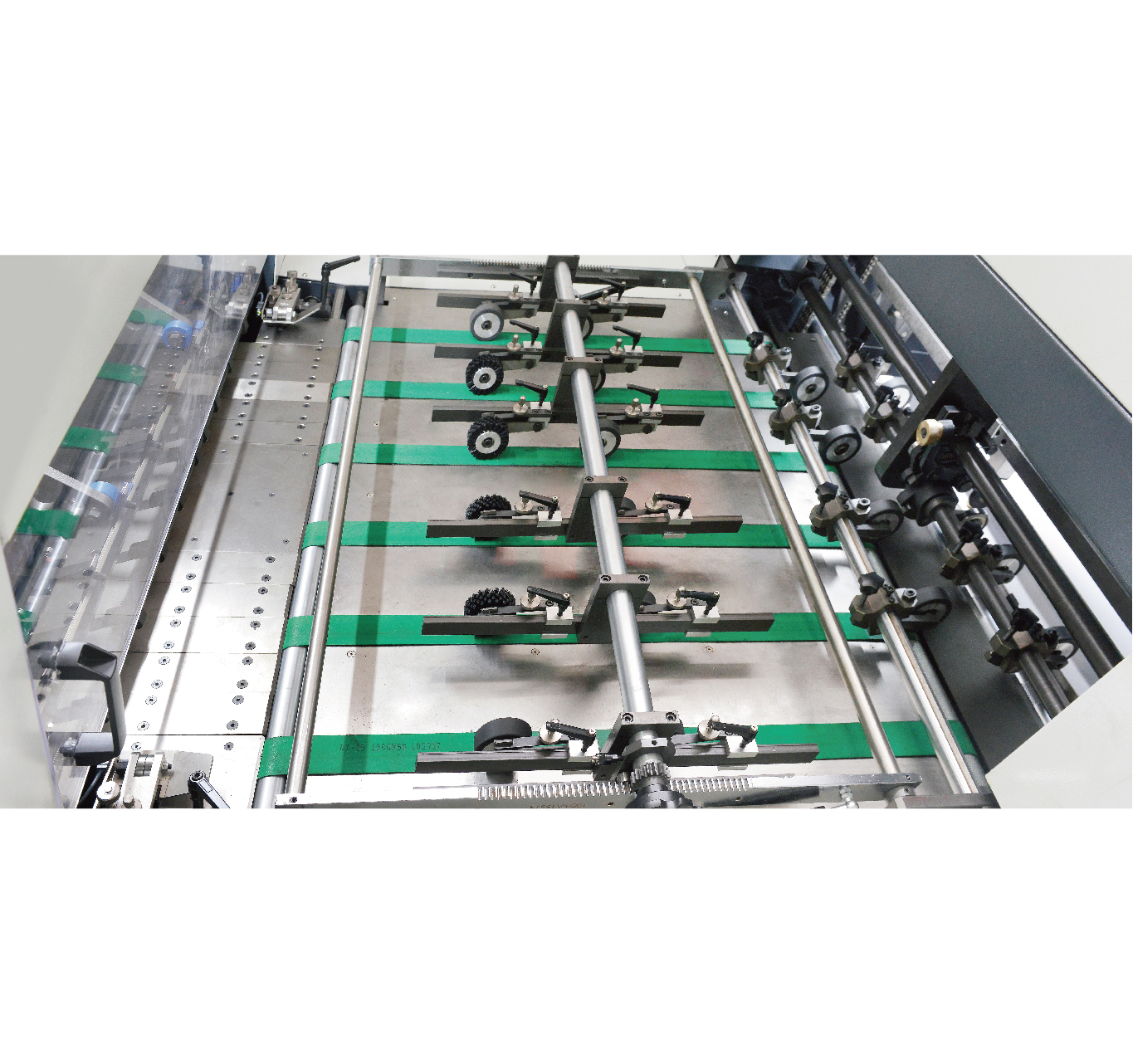

Feeding Table:

Synchronizing device to adjust the sheetpositioning to the front lay by handduring production, Sheet hold-downdevice (guiding the sheets to the frontaws )

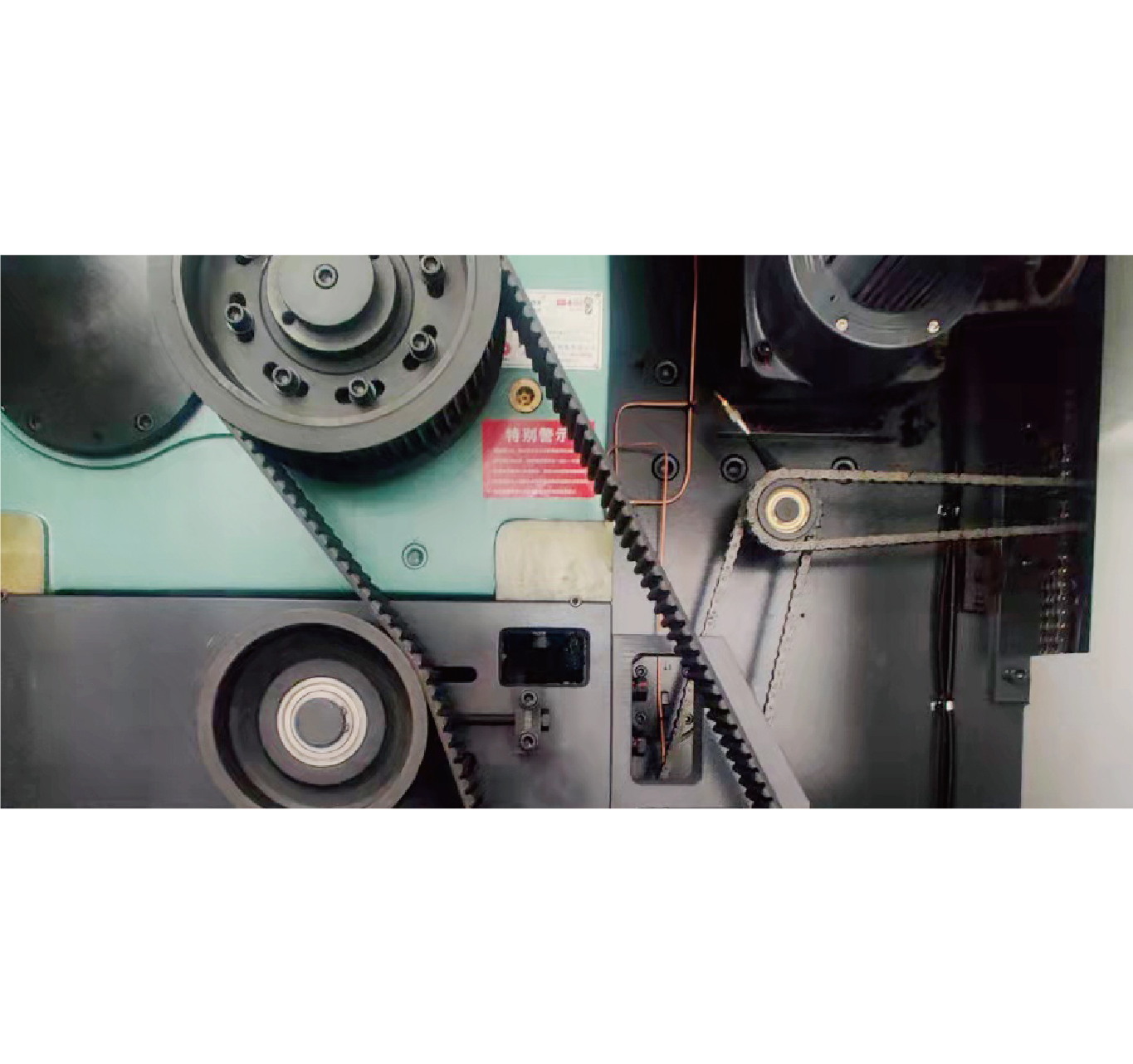

limine BeltDriven Device:

Taiwan high precision intermnttentsegmentation ensure high positionaprecision for long tie usage.

Stripping Unit:

Adopt center line system, upper andlower stripping tool mounting framecan be pulled out for job set up andmake ready.

Paper Collecting Unit:

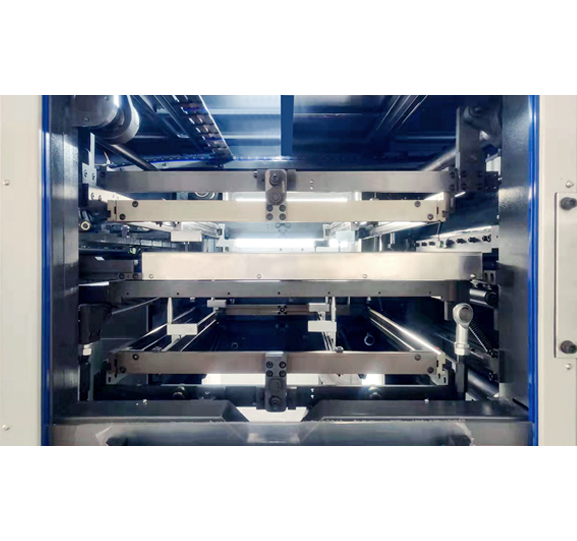

Automatic delivery with non - stopcurtain. This curtain moves into thedelivery to catch the arriving sheetsduring the pile exchange. two blowersfor paper collection can ensure neatcollection of thin and thick papers.

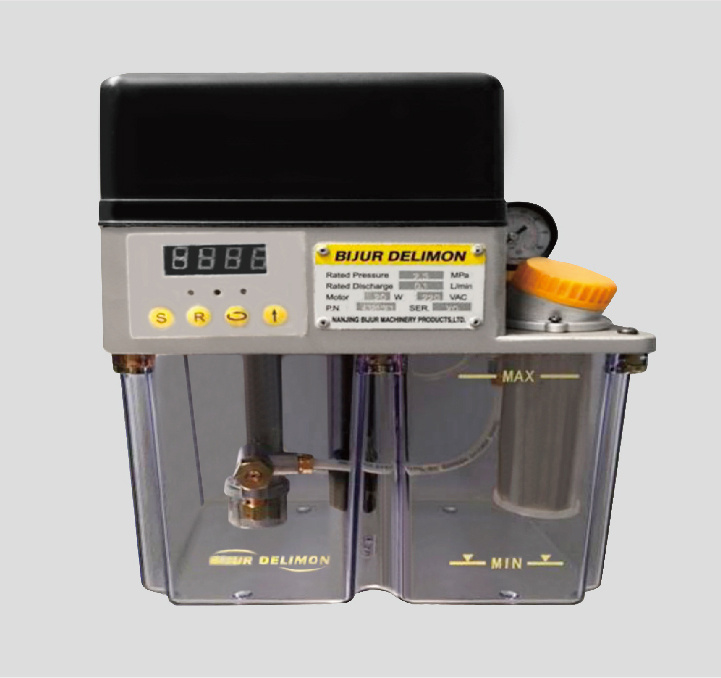

Auto lubrication System:

Hdopt concentrated auto lubricationsystem to make sure the driven partsworking better.

❈ Configurations:

Remark: Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract.

Standard Configuration: √; Optional: △; Not Included: ×.

MHC-1060/1080: Automatic Die Cutting & Creasing Machine
MHC-1060/1080A: Automatic Die Cutting & Creasing Machine (Heavy Duty)

Model	MHC-CE	MHC-A
☞ Feeding Unit
Monolithic conveying section wall panel of ductile iron	√	√
Fish scale type strong paper suction head, 4 suction and 4 feed, the suction head can adjust various paper suction Angle according to the deformation of paper	√	√
Adjustable air suction tube, suction head and air distribution valve superhard alloy treatment	√	√
Three feida head anti-collision devices	√	√
Horizontal paper parting and blowing device	√	√
The main and secondary stacking paper table does not stop alternately, feida non-stop operation, the maximum pile of paper height 1600mm	√	√
Main electric left and right trimming device for paper feed stack	√	√
The pre-stack device is equipped with rails so that the operator can accurately and easily load the stack into the feita	√	√
Push-pull side gauge, one set for operation side and one set for transmission side. Side gauges can be adjusted between push and pull gauges to meet different paper requirements	√	√
Side gauge, front gauge paper photoelectric detection	√	√
Paper arrives before the gauge, slow down the function of paper	√	√
Electromechanical double detector	√	√
Import paper conveyor belt and stainless steel conveyor plate	√	√
Pneumatic lifting device for feeding frame	√	√
Single point clutch: the conveying part and the main part can be separated and combined synchronously at any time, simplifying and facilitating the operation sequence. No matter the sample, test pressure, etc., can be arbitrarily separated and closed conveyor section	√	√
PLC and electronic CAM control the timing of the whole machine	√	√
☞ Die Cutting Unit:
Ductile iron heavy main body and left and right wall panels and upper platform, lower platform	√	√
Imported worm gear, worm with 40CR crankshaft	√	√
Rotary device for die cutting bottom plate and cutter template	√	√
Electric pressure regulating device can realize accurate pressure control through PLC touch screen keys	√	√
The whole set of imported anodized aluminum alloy tooth row and positioning structure 5 groups, each tooth row adopts adjustable tooth row structure	√	√
Import main drive chain	√	√
Imported intermittent divider	√	√
Imported synchronous belt, belt wheel drive	√	√
Main drive inlet pneumatic clutch brake device	√	√
Japanese SMC pressure detection device, pressure is too low alarm	√	√
Die-cut plate frame adopts center line fast positioning device structure	√	√
Die-cut plate frame and die-cut bottom plate are locked by Japanese SMC gas regulator, to avoid the upper plate frame lock installation is not in place, effectively avoid the loss caused by human factors operation	√	√
The whole machine adopts centralized automatic oil supply system to ensure that the transmission part is not short of oil	√	√
Equipped with air storage tank to ensure the stable air pressure	√	√
☞ Delivery Unit
Adjustable mechanical paper receiving brush and paper pressing mechanism to help the teeth discharge paper and stack	√	√
Paper collecting and paper leveling device	√	√
Photoelectric detection of the upper and lower limit switch prevents the paper from being piled too high and the paper from being rolled up	√	√
Plug rod type auxiliary paper receiving frame, can realize non-stop machine paper receiving	√	√
Paper receiving bidirectional auxiliary blowing, manual sampling mechanism, easy to operate	√	√
☞ Electrical Parts:
Huichuan PLC control system	√	√
The die-cutting part adopts 10.4 – inch touch screen	√	√
All the machines adopt relays, AC contactors, air switches and buttons made by Moeller from Germany to ensure the stability and reliability of electrical parts	√	√
The whole machine adopts Japanese Omron photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action	√	√
